Flood Barrier BL/HAP-SB

Article Index: 324, 329, 337

BL/HAP-SB

  • Barrier, slide-insert

  • stackable

  • Ease in handling, reliable flood protection

Dimensions
BL/HAP-SB 200-50
BL324
Aluminium body 200 x 50 x 4 mm
BL/HAP-SB 150-80
BL329
Aluminium body 150 x 80 x 4 mm
BL/HAP-SB 150-100
BL337
Aluminium body 150 x 100 x 4 mm

Suitable for crack-free surfaces with ground/floor unevenness of up to 20 mm, e.g. concrete, corrugated sheet metal, tiles, stones, etc.

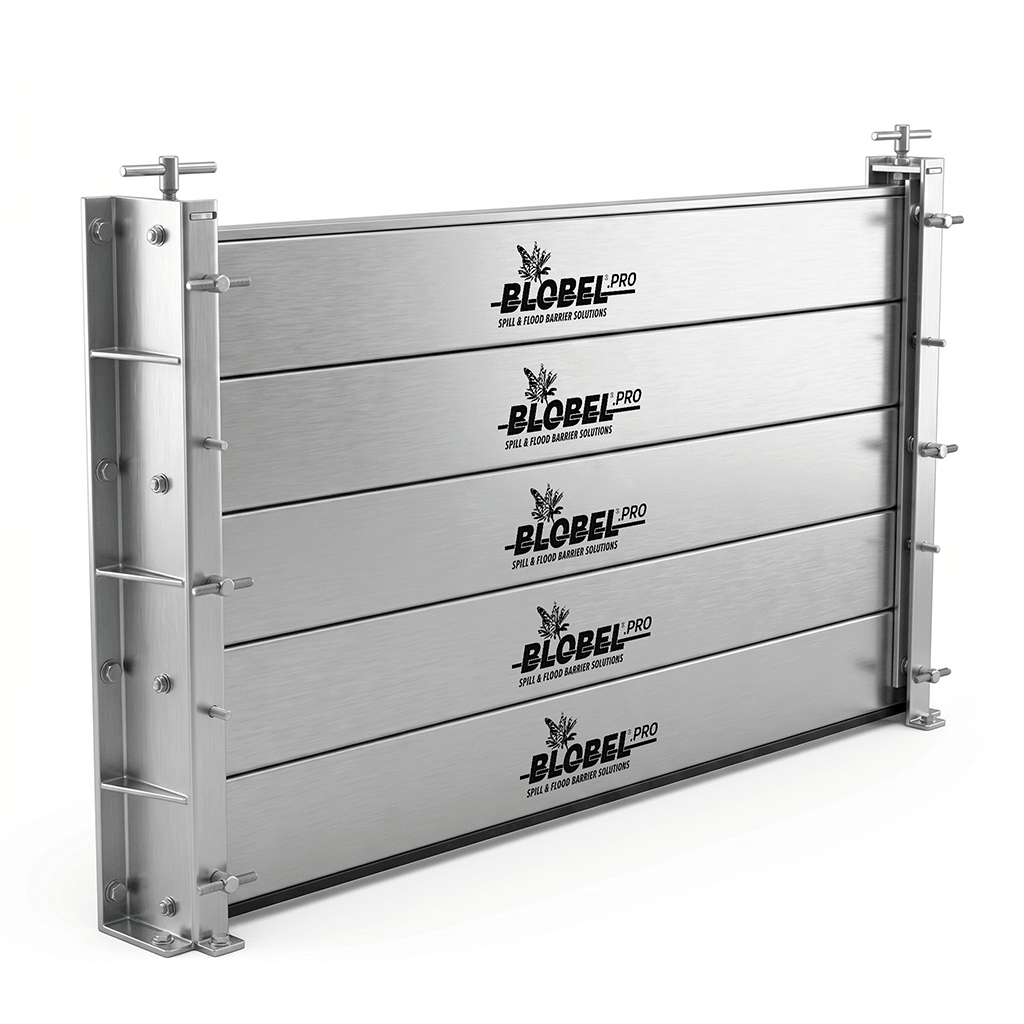

The floodwater barrier consists of two or more hollow, reinforced aluminium body sections with lower edge protection. A compressible, highly-adaptable special seal is applied on the lowermost barrier section. Each of the other barrier sections is provided with an easily-compressed polyurethane-based seal.

The floodwater barrier sections are rigidly installed universally mounted in two "U"-shaped mounting devices by way of preference within a door/gate opening, between walls, etc. and sealed against the building or structure. With a special version, mounting is also possible outside of the opening.

The barrier sections are firmly pressed against the seal of the mount and floor from the side and from the top by means of pressure screws or alternatively with tommy screws. A reliable seal is thus ensured.

The aluminium barrier sections have a polished bare metal finish. Steel components are galvanized. Paint finish or powder coating upon request. Special wall mounts upon request.
