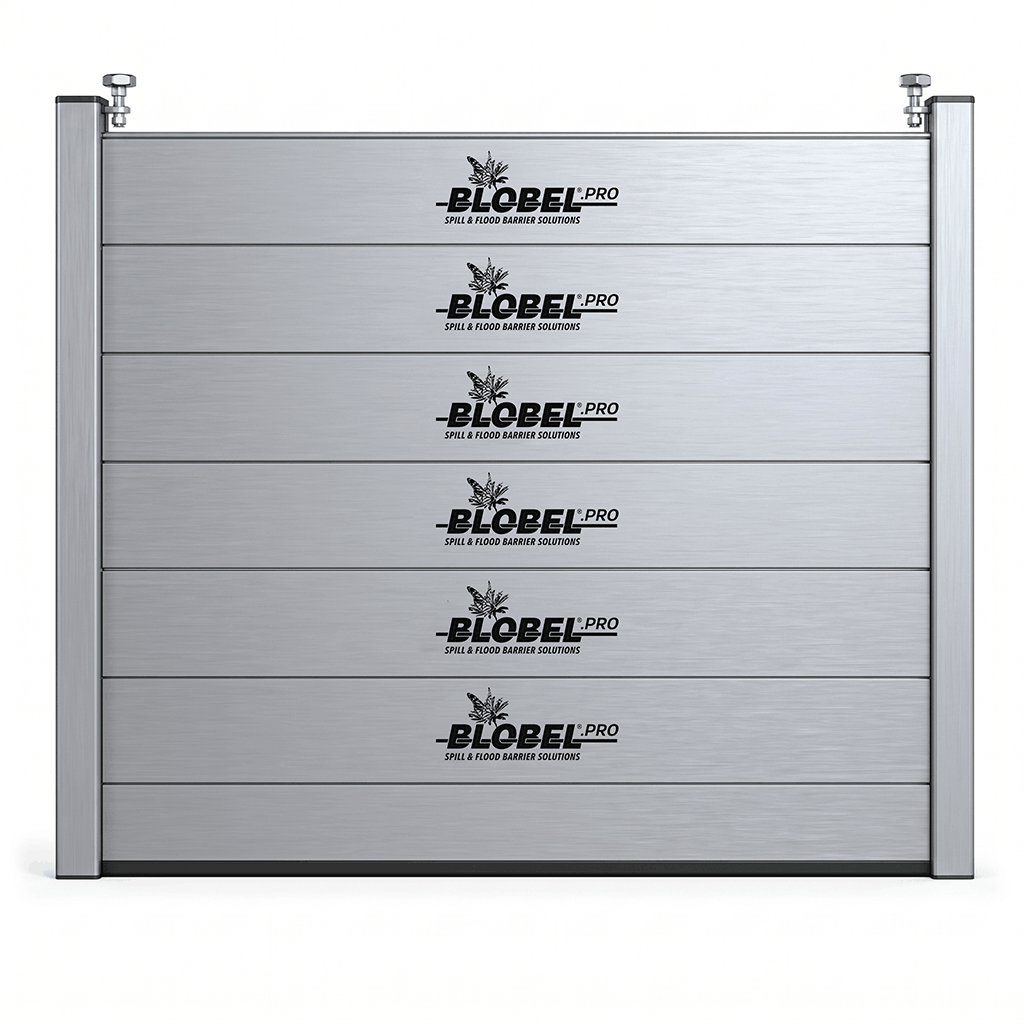

Flood Barrier System GSB-H
Flood Barrier System GSB-H
Flexible protection, that grows with the rising flood
The lightweight aluminum profiles slide between vertical U-posts, one by one.
With short and heavy rain, it is often enough to simply insert the first profile.
For long, heavy rain or flooding, additional panels simply can be added as needed.
The vertical U-posts can be extended even after the barrier is installed. This allows for the height to be increased and the use of additional profiles. Depending on the width of the barrier, the height can be extended up to 2 meters.
Taking the flood barrier height into consideration, the GSB-H can span up to 5 meters in width.
Technical Data |
||||||||
Height of the barrier (mm) |
250 |
500 |
750 |
1000 |
1250 |
1500 |
1750 |
2000 |
Maximum length (mm) |
4950 |
3900 |
3430 |
3100 |
2880 |
2700 |
2550 |
2430 |
Number of profiles |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
No extra masonry work required
Various installation options with minimum impact on the aesthetics of the building
-
In front of the opening:The vertical U-posts are bolted on the face of the wall.
-
Within the opening:The vertical U-posts are bolted within the opening.
-
Permanently installed U-posts:For permanence the U-posts are directly mounted to the wall. Vandalism-safe post covers available.
-
Mobile U-posts:For easy removal the U-Posts are mounted to recessed steel or aluminum.
-
Installation by our trainedinstallation technicianor self installationwith a special installation kit
Easy assembly - no tools needed
Wether one profile or several – the pressure screw used to compress the seal can be inserted at any position and closed by hand effortless. No tools needed.
Leak-tight and safe
Our special seal is temperature, UV and Ozone resistant. It does not age. Its placing within the posts protects the seal against wear and tear. Aluminum profiles easily slide up and down U-posts. No lubricant needed.
High Resistance and light weight
Profiles and U-posts are made of high grade aluminum, granting high resistance and light weight. Easy assembly for everyone. Corrosion and longevity not an issue.
Flood barrier GSB-H
-
Individual profiles, manually adjustable
-
Rapid deployment
-
Simple insertion of the profiles within the U-posts
-
Easy use of the pressure screw
-
High strength aluminum profiles and U-posts
-
Anti-vandalism covers available
-
Reliable and durable sealing gaskets
-
Installation within or in front of the opening
-
Assembly/installation according to requirements
-
Short lead times
GSB-H
A typical man door
installation
GSB-H Testing
10' x 3' (3m x 1m) the
flood barrier performs as expected
GSB-H Flood Wall
The flexible design allows
a wide range of situations
